By aerodynamically encasing OEM high floatation landing gear, Raisbeck’s fully enclosed High Flotation Gear doors restore the climb and cruise performance of standard-gear King Airs while protecting wheel wells, tires, and brakes from the elements.

UPGRADE BENEFITS

• Fully enclosed protruding high-flotation gear, keeping wheels, tires, and brakes protected against weather and dirt
• Drag reduced to a minimum, reducing fuel consumption
• Restored standard gear climb and cruise performance
• Cruise speeds increased by 4-10 knots
• For military ISR operations, reduced drag and increased loiter time by as much as 33 minutes

TECHNOLOGY

• Aerodynamically area-ruled to maximize drag reduction
• Constructed of lightweight composites for maximum strength and minimum weight

Phoenix By Blackhawk is a complete nose-to-tail upgrade transformation for your King Air or Conquest I, delivering the custom aircraft you’ve always dreamed it could be for considerable savings over buying new.

UPGRADE BENEFITS

• Improved speed, climb, and power performance
• Enhanced safety
• Increased comfort
• Better ramp appeal
• Latest technology
• Greater payload and mission capability

TECHNOLOGY

• New increased horsepower Blackhawk XP Engine Upgrade
• Choice of latest avionics technology:
  • Collins Pro Line 21 with ADS-B, WAAS GPS with LPV and updated PFD/MFD screens
  • Garmin G1000 NXi w/ADS-B and WAAS GPS
  • Dual Garmin G600 TXi with Garmin 750/650 ADS-B/WAAS GPS with LPV
  • BendixKing AeroVue (B200 only). Includes full cockpit upgrade with autopilot, radar, NAVS, COMS, GPS, ADS-B transponders, Bluetooth audio
  • Pro Line Fusion
  • Electroluminescent cockpit panels

Upgrade Includes

• XP Engine Upgrade
• New or freshly overhauled propellers
• Phoenix signature custom paint
• Phoenix signature custom interior
• Full cockpit refurbishment, including electroluminescent panels
• New window polarizers or window shades for King Airs
• Glass cockpit avionics
• Fresh annual inspection
• New Pratt & Whitney Canada (P&WC) ESP® Gold for first 400 hours or two years on new engines
• Warranties that include five years or 2500 hours on the engines, two years on avionics, and one year on paint

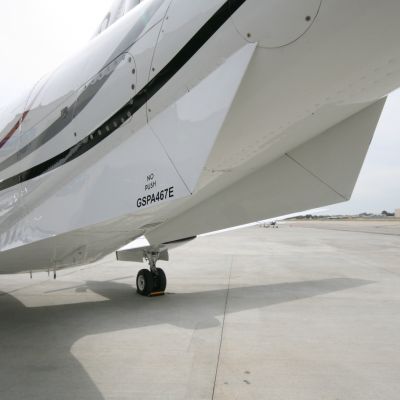

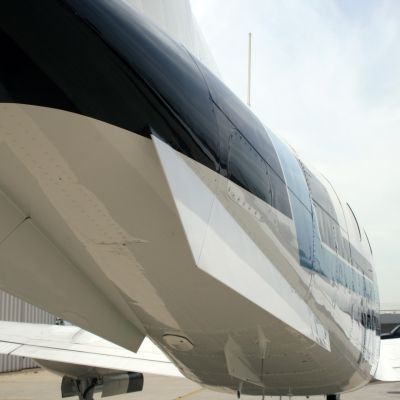

Raisbeck Dual Aft Body Strakes improve directional stability, passenger comfort, and aircraft control and handling. By channeling airflow under the aft fuselage, the strakes reduce noise while increasing comfort and performance.

UPGRADE BENEFITS

• Improved directional stability and pilot control
• Reduced drag in all flight modes
• Improved passenger ride quality
• Quieter cabin and cockpit
• Increased climb and cruise performance
• Inherently reduced minimum control airspeed
• Eliminate or increase yaw-damper-inoperative altitudes

TECHNOLOGY

The strakes eliminate wing/body vortices that disrupt airflow under the aft fuselage and create drag. The strakes instead channel the vortices, accelerating the air to push the airplane through the air.

• Classic beech ventral fin is removed
• The shedding wing/body vortices are captured under the aft fuselage, pressurizing and reducing aft-body drag
• Equivalent vertical tail area is increased

Blackhawk’s Hawkeye digital smart gauges bring modern advancements to legacy aircraft. For strong human factors support, the gauges emulate analog readouts with digital accuracy, clearly displaying accurate information without expensive panel modifications.

UPGRADE BENEFITS

• Intelligent, information-rich engine monitoring system
• Increased accuracy over analog
• Visual display of exceedances
• Digital display that emulates familiar two-inch analog gauges for human factors
• Gauges fit in analog positions; no panel modifications required

TECHNOLOGY

• Microprocessor signal processing and digital display technology
• Superior lighting with LED backlight
• Sensor to automatically adjust to lighting conditions – no post lighting
• Anti-glare, airtight, no-fog glass

Designed by Raisbeck Engineering and manufactured by Hartzell, the Raisbeck Swept Blade Turbofan Propellers for the King Air utilize unique swept-wing technology designed to increase thrust while reducing noise and vibration.

UPGRADE BENEFITS

• Larger 96 to 106-inch diameter (depending on model) develops more thrust without increasing noise or vibration for a quieter cabin
• Increased thrust at lower RPMs
• Increased performance from takeoff to landing
• Improved runway acceleration and landing deceleration
• Certified worldwide to meet the most stringent regulations and noise requirements
• Trouble-free operation between 6-year, 4,000-hour overhauls

TECHNOLOGY

• Unique combination of aerodynamic technology and computer-aided manufacturing
• Full 30° blade sweep increases prop diameter for greater thrust without added noise of vibration
• Oversized hydraulic power piston to lock in propeller synchrophasing
• Grease-lubricated hubs to preclude oil leaks
• 4-blade aluminum propellers are certified for the King Air 200, 300, and 350
• Lightweight 5-blade composite swept blade propellers are available for the King Air 200/300/350

Upgrade Includes

• Two 4- or 5-blade propellers
• Two aluminum spinners
• Airplane flight manual supplement
• Installation instructions
• Instruction for continued airworthiness
• Operation and installation manual

MT-Propeller’s fast, lightweight composite propellers reduce weight, vibration, and drag while increasing lift, thrust, and lifetime operation. These 4- and 5-blade propellers maximize the benefits of a Blackhawk engine upgrade.

UPGRADE BENEFITS

• Reduced Weight – Lighter than aluminum, natural composite propellers reduce weight on the engine crankshaft and overall aircraft weight.
• Reduced Vibration – Unlike aluminum, composites do not experience harmonic vibration. Gyros, motor mounts, radios, heat muffs, cowlings, and more enjoy longer life with reduced vibration.
• Greater Strength – Composites are stronger than aluminum.
• Unlimited Blade Life – Composite propellers are brought back to exact factory-new dimensions during overhaul, avoiding replacement.
• Steel Hub Inserts – Steel bearing inserts eliminate the requirement to replace the full hub when tolerances are exceeded.
• Quieter – Shorter blades and increased blade count results in a smaller diameter and lower, quieter tip speeds.
• More Lift/Thrust – Lower tip speeds maintain smooth airflow, resulting in more lift/thrust.
• Less Drag – A smaller prop arc disc creates less drag than larger diameter prop arc discs.
• More Ground Clearance – Smaller diameter propeller blades reduce chances for prop damage from ground objects and debris.
• Added Resale Value – Upgrade benefits are passed along, increasing resale value.
• Easy Installation – The blades bolt on easily and use the existing prop governor.
• Full Warranty – 1 year or 1,000 hours (whichever occurs first) for any manufacturing defects.

TECHNOLOGY

• Natural composite blades and hubs with stainless steel leading-edge guards
• Unlimited blade life through the ability to restore composites to factory specifications during overhaul
• Steel hub bearing inserts
• Increased blade count and shorter diameter
• Utilize existing prop governors
• Available in white, black, or grey

Upgrade Includes

• One 4- or 5-blade reversing and full feathering constant speed propeller for each engine
• One full composite spinner (AFRP) for each engine
• Airplane flight manual supplement
• Installation instructions
• Instruction for continued airworthiness
• Operation and installation manual

A leader in aircraft propeller systems since 1917, Hartzell Propellers significantly improve your upgraded aircraft’s performance. Choose from three or four blades, depending on your engine upgrade.

UPGRADE BENEFITS

• Two choices based on aircraft operations
• Exceptional reliability
• Highly respected, long-established company
• Exceptional service support
• 4-blade propellers provide additional ground clearance and noise reduction

TECHNOLOGY

• Optimized blade airfoil
• High-quality aluminum construction
• Proven design and reliability

UPGRADE INCLUDES

• 3- or 4-blade propeller
• Polished spinner
• STC paperwork
• For electric de-ice option: electric de-ice kit for prop and airframe
• For fluid anti-ice option: anti-ice kit (prop)

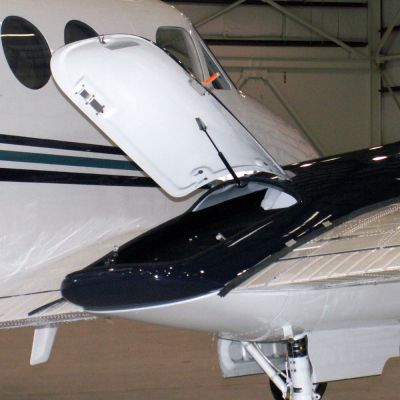

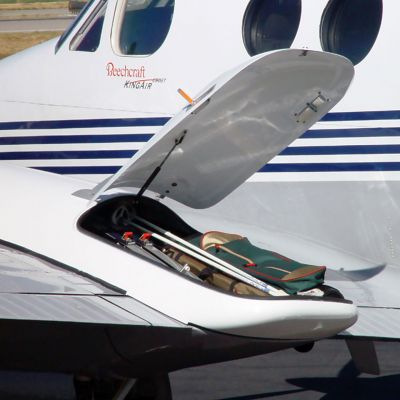

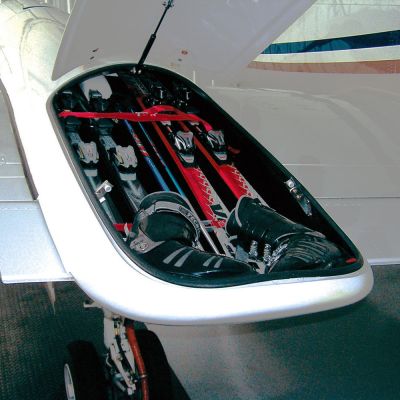

The Raisbeck Crown Wing Locker System for King Air optimizes your aircraft’s cargo capabilities by adding baggage space behind each engine. The aerodynamic design ensures zero performance loss.

UPGRADE BENEFITS

• Boost cargo capability by up to 600 lbs. (300 lbs. per locker) in 17 cubic feet of luggage space
• Carry oversized luggage, snowboards, skis, fishing equipment, and full-size golf bags
• Free up seats for additional passengers
• Save on interior wear and tear
• Fully certified for FAR Part 135 operations
• Lock and key security

TECHNOLOGY

• Medeco locks
• Lightweight composite construction allows for infinite-life structural certification
• Aerodynamically area-ruled to minimize drag
• Fully self-contained for a clean and dry locker interior
• Removable in minutes for aircraft maintenance or inspections
